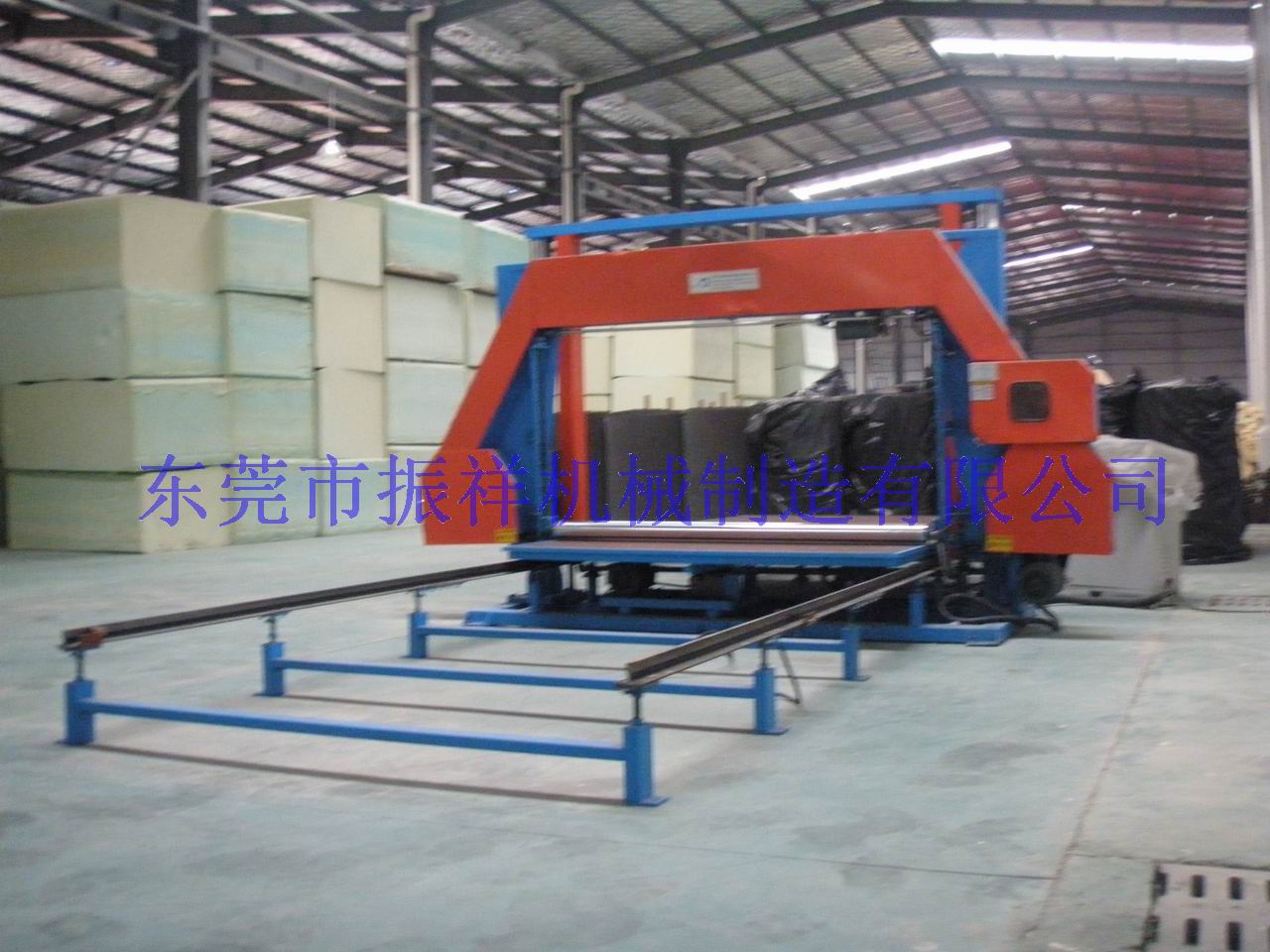

This machine is mostly used for cutting the block foam into slices, it adopt fully automatic digital control, electric press roller. Easy to operate and cutting precision. (worktable can choose adding to vacuum equipment)
|
Model |
ZXPQ-1650 |
ZXPQ-2150 |
|
Cutting foam size |
L2000*W1650*H1200mm |
L3000*W2150*H1200mm |
|
Cutting thickness |
3~200mm |
3~200mm |
|
Cutting speed |
0~25m/min |
0~25m/min |
|
Blade length |
8500mm |
9480mm |
|
Total power |
8.12Kw |
|
|
Machine weight |
2000Kg |
2200Kg |
|
Machine external size |
L5800*W3500*H2400mm |
L7800*W4200*H2400mm |
